Crystal controlled 147.460 MHz FM transmitter
The XFM1 transmitter is a crystal controlled tone modulated FM transmitter designed for model rockets but suitable for wildlife, balloons and many other applications requiring a small, frequency stable FM transmitter. Use this transmitter with a scanner or 2 meter amateur radio receiver. Transmitter ground range is approximately 400 yards (5 feet above ground) . Field tests were done with a ICOM IC-W32A transceiver with 0.16 micro volts of receiver sensitivity through the standard 8 inch antenna. Air to ground transmissions can improve range significantly as will a directional high gain antenna or a more sensitive receiver.General Specifications:
Frequency: 147.455 to 147.460
Mode: FM
Size: 2 .75 "x 0.5"
Weight: 8 grams (.3 oz) including battery
Range (ground): 400 yards with counterpoise
Frequency control: Crystal
Battery life: 3 days (two CR1632 batteries in series)
Receiver Type/requirements: FM, 144.455 - 147.460 MHz., 0.16microvolts sensitivity or better
Receiver Antenna: directional antenna recommended but not required.
Other: Knowledge of radio direction findingTRANSMITTER
The transmitter is a crystal controlled 147.460 MHz FM transmitter.The transmitter is tone modulated by a 12F675 microprocessor approximately every two seconds. A Morse code call sign ID is transmitted approximately every 30 seconds. If a call sign has not been specified it will transmit “XFM1”.The transmitter is turned off between tone bursts which greatly extends the battery life. The circuit is designed to use a low cost “computer crystal” 49.39 Mhz (3rd over tone), However, custom crystals can be used if other frequencies are desired. If other frequencies are desired a 3rd overtone series crystal can be ordered from a crystal manufacture. Microprocessor
The transmitter is controlled by a program running border=0>
Directional Beam antenna:A “beam” or “Yagi” antenna is probably the simplest and best all around choice for a directional antenna. A simple 3 element antenna can be built for about $10.00 using common materials. The sensitivity pattern shown below is when both the transmitter and receiving antenna is polarized vertically (the elements are pointing up and down). If the antenna of the transmitter are not vertical then the pattern will be different unless the receiving antenna is orientated to match the transmitter antenna. Since the transmitter antenna’s orientation is not always known some experimentation must be done with the receiving antenna. (Note that the patterns are not always as shown. They can vary depending border=0>
Receivers
To achieve adequate performance you will need a receiver with at least 0.16 micro volts of sensitivity. Most 2-meter Amateur (ham) radios are at least this sensitivity. Scanners may or may not be sensitivity enough.
Component Side View

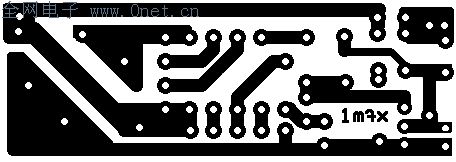

reversed foil side
2" x 0.65"

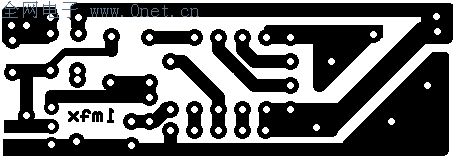

foil side
Transmitter parts
Resistors
Value
Part number
Supplier
Comments
R1
10K 1/8 watt
299-10K
Mouser
R2
100K 1/8 watt
299-100K
Mouser
Capacitors
C1
.001uF
21RX510
Mouser
C2
22pF
21RD722
Mouser
C3
15pF
80-C315C150J1G
Mouser
two C3 (15pF caps) may be needed (see text)
Semiconductors
Q1
NTE107
526-NTE107
Mouser
Q2
NTE108
526-NTE108
Mouser
Crystal
xtal
147.460
815-ABLS-49.152-B2
Mouser
49.152MHZ 3rd overtone crystal
Inductors
L1
0.68 uH
434-22-R68
Mouser
L2
4 turns #22 magnet wire tightly wound on 1/8"dia.
278-1345B
Radio Shack
Enamel-coated magnet wire
Miscellaneous
Battery
CR1632 or BR1632
658-BR1632
Mouser PCB
See foil pattern
antenna & Counterpoise
12 inch
#20 to #24 solid conductor wire
Just about any type of “hook-up” or phone wire
J1
Jumper wire
Use trimmed off leadsource codetele147_1.asm
